Ready for those conditions

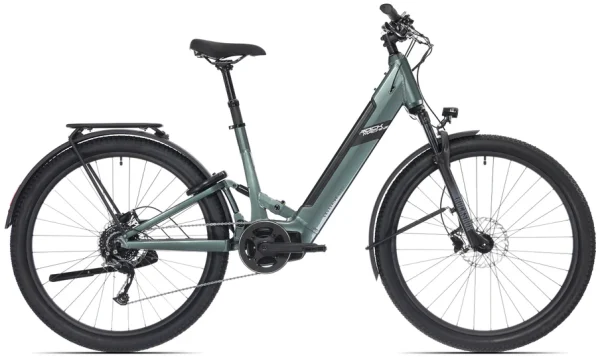

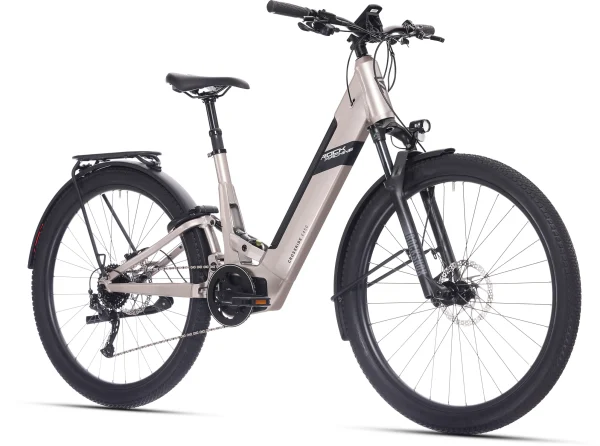

The Rock Machine Crossride FS in the Easy Entry & Exit version with suspension frame offers the handling characteristics of a true off-road bike with the comfort of a city cruiser. With this frame platform, you don’t have to take shortcuts anymore; the full suspension bike can handle more than any touring bike before it. This versatile machine can not only put a smile on your face during weekend rides, but equally serve as the ideal means of transportation. The innovative aluminium frame in a subtle design is designed with maximum durability and bike control in mind. Power is provided by the proven 90 Nm Sport Drive unit. Combined with a 504 Wh battery, it can travel up to 100 km. For low-visibility rides, the AXA Blueline 30 high-performance light is available. Rigid mudguards will protect you from the rain and an integrated lock will keep your bike safe while shopping.
Specification
BASE INFO
| E-SYSTEM |
SPORT DRIVE, FULL INT 500Wh Battery |
| DISTANCE |
90 Km |
| MAX. TORQUE |
70 Nm continuous, 90 Nm peak |
| WEIGHT |
25.60 kg |
E- BIKE PARTS
| MOTOR |

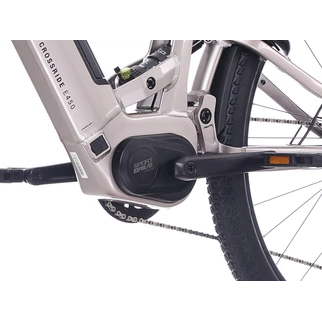

SPORT DRIVE middle motor MD250S |
| CHARGER |
SPORT DRIVE charger, 36V/4A, charging time up to 3,5 hours |
| BATTERY |
SPORT DRIVE fully integrated downtube battery, 36V, 500 Wh |
| DISPLAY |
SPORT DRIVE Color display with USB port |
FRAMESET
| FRAME |

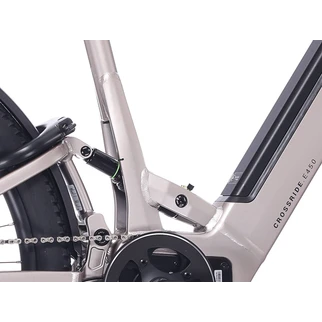

Alloy Al-6061 T6 Custom tubing, Smooth Welding, Fun Ride Geometry, Single pivot suspension, Trunion mount shock, Sport Drive MID Motor, OLD 135×9, Disc Brake Post Mount, Fender&Kickstand Ready Dropout, Replaceable RD Hanger, Inner Cable Routing |
| SUSPENSION FORK |
RockShox Judy Silver TK, Tapered, SoloAir, 15x110mm axle, 100mm travel |
| REAR SHOCK |
DVO OPAL E3,165x40MM |
| REAR SHOCK HARDWARE FRAME |
Trunion |
| REAR SHOCK HARDWARE SWINGARM |
22,2×8 |
| HEADSET |
FSA Orbit 1.5E No.57B, Zero Stack |
| SUSPENSION TRAVEL FRONT |
100mm |
| SUSPENSION TRAVEL REAR |
100mm |
DRIVETRAIN
| GEAR RANGE |
1×9, 11-36, 327% |
| SHIFTERS RIGHT |
SHIMANO ALTUS SL-M2010-9R RapidFire Plus, 9-speed |
| REAR DERAILLEUR |
SHIMANO ALTUS RD-M2000 Shadow |
| CRANKSET |
Wheel Top ED2L |
| CHAINRING |
42T |
| CASSETTE |
SHIMANO CS-HG200-9, 11-36T |
| CHAIN |
KMC e9S |
BRAKING SYSTEM

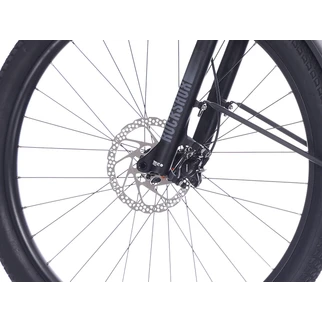

| BRAKE FRONT |
SHIMANO MT200 |
| ROTOR FRONT |
SHIMANO SM-RT56, 180mm |
| BRAKE REAR |
SHIMANO MT200 |
| ROTOR REAR |
SHIMANO SM-RT56, 180mm |
WHEELS
| HUB FRONT |
ONE1 QLSXEF, 32H, 15x100mm THRU Type AXLE |
| RIM FRONT |
STARS J30 |
| TIRE FRONT |
RUBENA CHEETAH 29×2,35° |
| HUB REAR |
ONE1 KT SRAR, 32H, CASSETE, Nut type |
| RIM REAR |
STARS J30 |
| TIRE REAR |
RUBENA CHEETAH 29×2,35° |
| SPOKES |
Sapim Galvanized Black |
COCKPIT
| STEM |
ONE1 TDS-C342 Alloy, 31.8mm, +3° |
| HANDLEBAR |
ONE1 Alloy, MTB AL-325BT, 6° upsweep, 9° backsweep, 25mm rise, 720mm, 31.8mm |
| BELL |
Widek Paperclip e-bike |
| GRIPS |
HERRMANS ERGO |
PARTS
| SADDLE |
WTB COMFORT WIDE |
| SEATPOST |
POST MODERNE DP-212, Ø 34,9mm, 100mm travel |
| PEDALS |
Ball bearing, with sand non slip inlay and reflector |
CITY/ SUV SET
| FRONT LIGHT |
AXA Blueline 30 |
| REAR LIGHT |
SPANNINGA Pling XE |
| FENDER |
ALLOY FULL COVER FENDERS |
| CARRIER |
Alloy for AVS |
| KICKSTAND |
ATRAN VELO, DUX HV |
| FRAME LOCK |
AXA Block XXL |
Geometry
Hide Geometry
| Frame size |
M |
L |
| BBD BB DROP (mm) |
25 |
25 |
| A SEAT TUBE LENGTH (mm) |
432 |
473 |
| B EFFECTIVE TOP TUBE LENGTH (mm) |
600 |
635 |
| S STACK HEIGHT (mm) |
660 |
678 |
| R REACH (mm) |
449 |
479 |
| C SEAT TUBE ANGLE |
76° |
76° |
| D HEAD TUBE ANGLE |
68° |
68° |
| RC REAR CENTER (mm) |
499 |
499 |
| G HEAD TUBE LENGTH (mm) |
190 |
210 |
| F WHEELBASE (mm) |
1250 |
1288 |
| STEM (mm) |
45 |
45 |
| HANDLEBAR (mm) |
720/R25 |
720/R25 |
| CRANKSET (mm) |
170 |
170 |
| Seatpost (mm) |
L310/T75 |
L360/T100 |
